| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1K130070 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Aluminum | GUOMAT: | 1K130070 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 1.0 Kg |
| Other Name: | Air Suspension Spring | Pressure Ability: | 0.2-0.8 M Pa |
| Goodyear: | 1B5-500 | Plate Material: | Aluminum |
| Highlight: | air helper springs,air suspension parts |
||

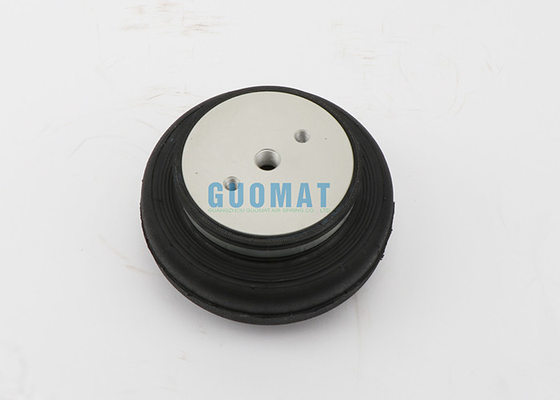

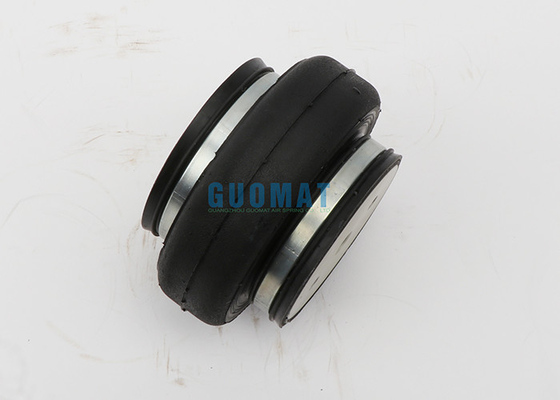

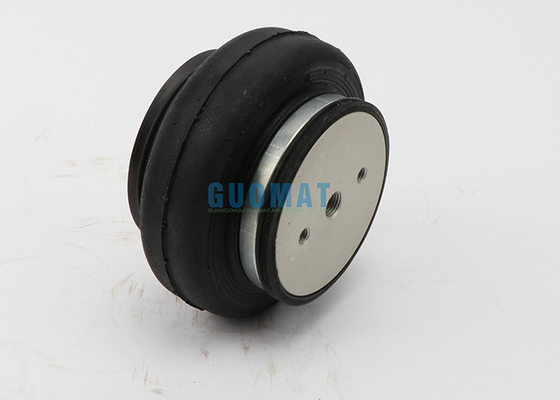

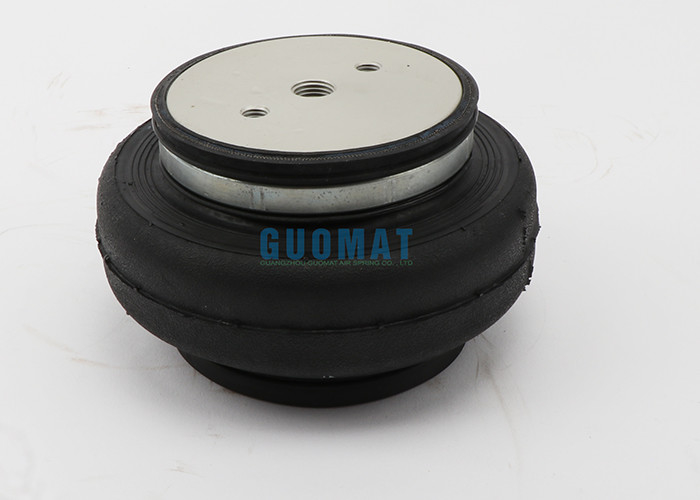

GUOMAT 1K130070 Single Small Size Vibration Industrial Air Spring Refer to Goodyear 1B5-500
Guomat 1K130070 Specifications replace Goodyear 1B5-500:
❶ Nut / Blind Nut
Top Cover Plate Screw number: 2 pcs
Bottom Cover Plate Screw number : 2 pcs
The Distance of Nut:44.5 mm
The Screw Of Nut: M8
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/4
❸ Cover Plate
Top Cover Plate Diameter: 85 mm
Bottom Cover Plate Diameter: 85 mm
❹ Rubber Bellows
Rubber Bellows Through Diameter: 130 mm
In 0.7 pa,Rubber Bellows Diameter :150 mm
The Working Stroke : MIN 50 mm to MAX 100 mm
Rubber Bellows Design Height :70 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
Without Piece Of Girdle Hoop
Guomat 1K130070 Standard sizes replace Goodyear 1B5-500
| Material Code | Natural Rubber |
| Maximum Ambient Temperature (°C) | 70 |
| Maximum Working Pressure (Bar) | 8 |
| Minimum Ambient Temperature (°C) | -40 |
| Net Weight | 0.85 KG |
| MAX Diameter | 145 MM |
| Number of Convolutions | Single |
| Port Size | G1/4 |
| Stroke Length | 50 MM |
| Cylinder Type | Standard |
| End Cap Material | Aluminum |
OEM Manufacturer:
GUOMAT 1K130070
Goodyear Original:1B5-500
Goodyear: 1B5-500
Goodyear: 1B5 500
Goodyear: 1B5500
The shipper needs an air suspension device.
* Driver comfort is higher.
* Increase resale value.
* Protect hinges, lamps, rivets and all trailer hardware.
The reason for the increase in air suspension usage:
* Suspension manufacturers have built a greater degree of durability,
Longer warranty period.
* Requires greater axis offset.
Air springTrucks, trailers and buses
Super-Cushion® air spring for truck, trailer bus, and cab and seat spring protection
Goods, providing constant trailers and providing long-term, trouble-free service.
Super-Cushion® air springs provide new high capacity for your trucks, trailers and buses
And long life They offer a quiet, buffering ride. Trucks, trailers and buses
The body is longer than the steel spring, because the vibration is smaller. driver
Ride more comfortable, become exhausted, remain vigilant. plus
The goods have better shock and vibration protection. Whenever you want to add
A shaft, Super-Cushion® air spring is suitable.
The drawing of GUOMAT 1K130070 and Parameter curve replace Goodyear 1B5-500
