| Place of Origin: | Guangzhou,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T6348 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD79.9-99.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 3-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| Product Name: | Air Suspension Air Shock | Quality: | 100% Tested |
|---|---|---|---|
| Goodyear: | 1R14-729 | Specification: | OEM Standard |
| Origin: | Guangzhou | Warranty: | 12 Months |
| Part: | Truck Air Suspension | Firestone: | W01-M58-6348 |
| Highlight: | Truck Air Spring W01-M58-6348,4023NP03 Truck Air Spring |
||
Product Description
| Type | Truck Air Spring,Rolling Lobe Air Spring |
| Material | Rubber,Steel |
| Firestone | W01-M58-6348 |
| Contitech | 4023 NP 03 |
| Goodyear | 1R14-729 |
| Phoenix | 1D 28A-10 |
| Taurus | KR624-18 |
| Dunlop FR | D13B26 |
| CF Gomma | 1T19E-2 |
| CF Gomma | 204676 |
| SAF | 3.229.0031.00 |
| 3.229.2231.00 | |
| 3.229.2431.00 | |
| 3.229.2131.00 |
GUOMAT Part Number: 1T6348
Type: Air Spring Assembly
Application: SAF Modular 2923V Underslung & Overslung
Pressure: Max. 7 Bar / 100psi
Operating Temperature: -40℃ to +70℃
Cross Reference Numbers
P10.4023.C03 , P104023C03
Contitech 4023NP03 , 4023 N P03
Firestone W01-M58-6348 , W01M58-6348 , 1T19L-11 , 1T16L11
Goodyear 1R14-729 , 1R14729
SAF HOLLAND 3.229.0031.00 , 2131.00 , 2231.00,2431.00
3229003100 , 213100 , 223100 , 243100
How does this Air Spring Work?
An air spring is a component of a suspension system that works by adjusting the air pressure inside the airbag. When the air pressure inside the airbag increases, the airbag expands, increasing the height and stiffness of the suspension system. Conversely, when the air pressure inside the airbag decreases, the airbag contracts, decreasing the height and stiffness of the suspension system.
By adjusting the air pressure inside the airbag, the suspension effect of the truck can be changed as needed. For example, when the load is heavy, increasing the air pressure inside the airbag can increase the stiffness of the suspension system and make the truck more stable. When the load is light or a more comfortable ride is needed, reducing the air pressure inside the airbag can reduce the stiffness of the suspension system and provide a more comfortable suspension effect.

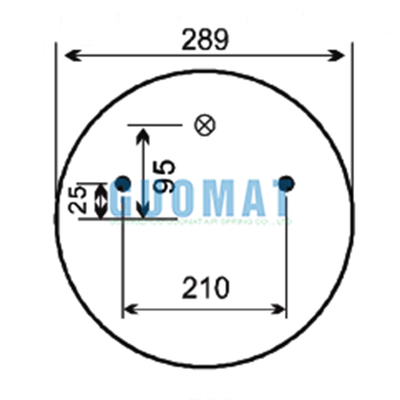

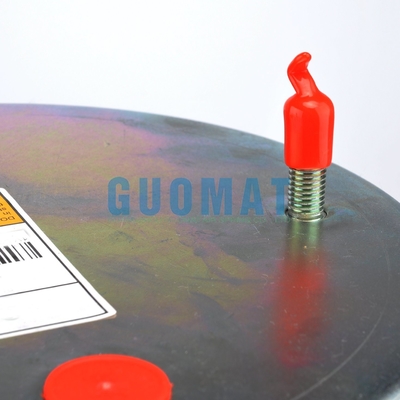

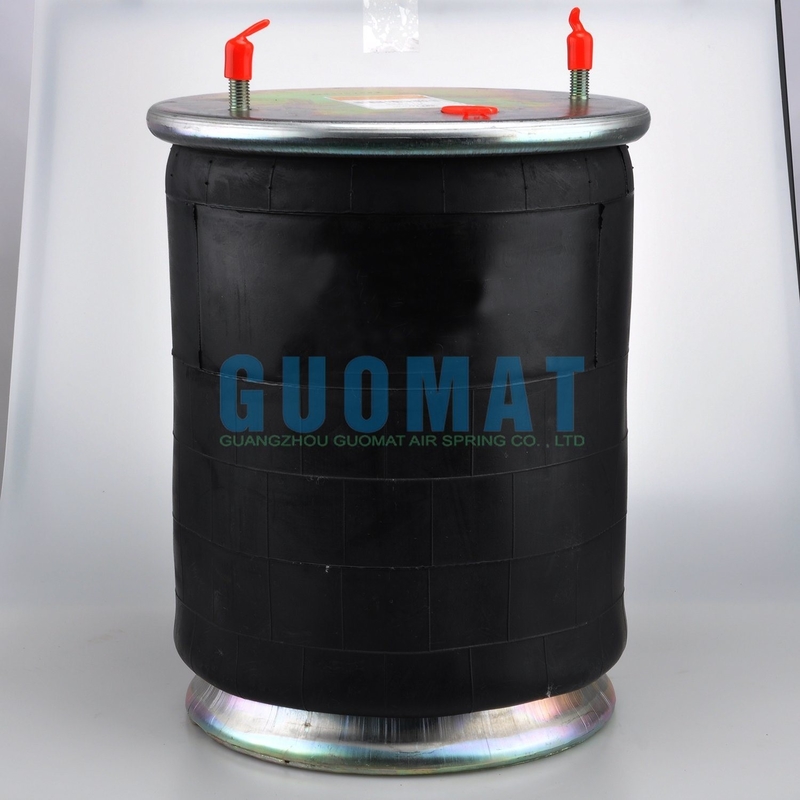

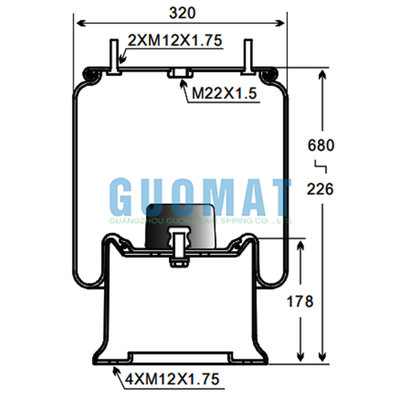

Pictures of Details
