| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B 8030 |
| Minimum Order Quantity: | 6PCS |
|---|---|
| Price: | $69.9-79.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber + Steel | Warranty: | 12 Months |
|---|---|---|---|
| Sample: | Available | Operation: | Gas-filled |
| Firestone: | W01-358-8030 | Goodyear: | 3B12-304 |
| Ridewell: | 1003588030C | Application: | For Industrial Machine |
W01-358-8030 Firestone Suspension Air Spring Kit FT 330-29 498 Contitech Replacement Airbag
Product Information
|
Cross references |
|||
|
Firestone |
W01-358-8030 |
Firestone Style |
38 |
|
Contitech |
FT 330-29 498 |
Goodyear |
3B12-304 |
|
Triangle |
6334/4432 |
Ridewell |
1003588030C |
3B8030 Triple Convoluted Technical Data
| OEM Number | Contitech FS 330-29 498 |
| Working temperature | -40°C bis +70°C |
| Failure testing | ≥3 millions |
| Top Cover Plate Diameter | 231mm |
| Bottom Cover Plate Diameter | 231mm |
| Rubber Bellows MAX Diameter | 330mm |
| The Working Stroke | MAX 460 mm to MIN 130 mm |
| Screw Center Distance of Top Cover Plate | 157mm |
| Screw Center Distance of Bottom Cover Plate | 157mm |
Industrial air springs play a key role in packaging machinery.
They are mainly used for shock absorption, buffering, leveling and precise positioning. They can significantly improve packaging efficiency, protect product integrity, and extend equipment life.
When the packaging machine runs at high speed (such as filling, sealing, labeling), it will generate strong vibrations, which will cause the packaging material to deviate, affecting the sealing accuracy; liquid/powder product spillage (such as beverage, milk powder packaging); mechanical structure loosening, reducing equipment life. Install air springs under the base of the equipment or key moving parts (such as turntables, conveyor belts) to absorb high-frequency vibrations (50~200Hz).
Under irregular loads (such as packaging boxes of different sizes/weights), the packaging machine is prone to tilting the equipment, affecting transmission accuracy. After installing the air spring, adjust the air pressure in real time to keep the equipment level.
The rapid start and stop of the packaging machinery or the collision of materials (such as canning lines) will generate impact force, which will cause product damage (such as glass bottles, fragile items) and wear of mechanical parts (such as guide rails, bearings). Install air springs at key impact points (such as the end of the conveyor belt and the gripping position of the robot arm) to provide flexible buffering.

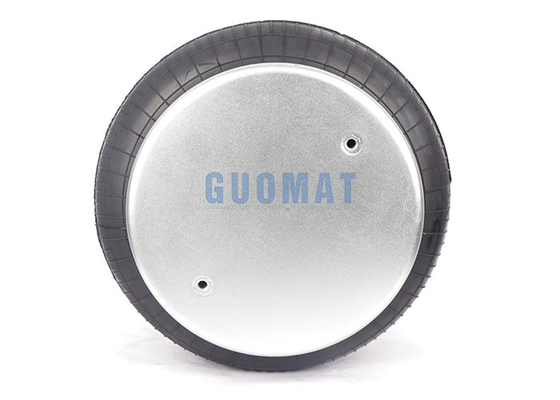

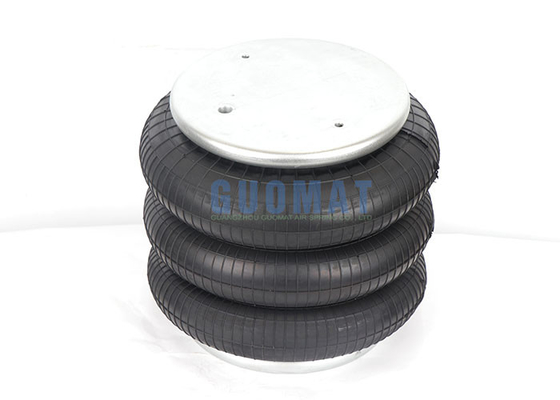

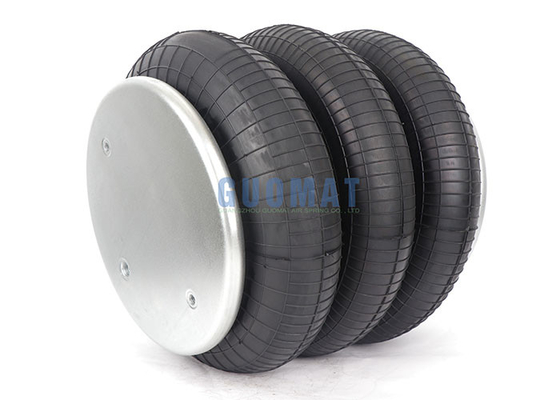

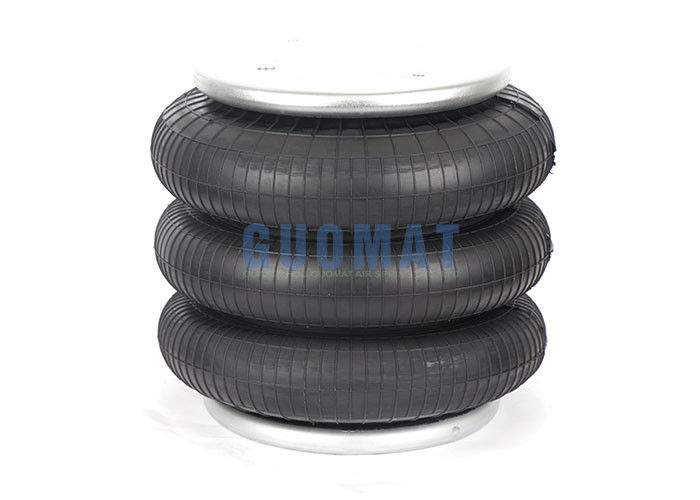

Product Image
